Replacing the Power Supply on LS-6000/LS-6500 Units: A Technical Guide

A power supply swap on the Beckman Coulter LS-6000 or LS-6500 platform is a common bench job, but it's also one where small procedural shortcuts create outsized rework. The following notes are intended for technicians and engineers performing this replacement and focus on the parts of the job most likely to cause a callback if rushed.

Isolate the Unit Fully

Disconnect the instrument from mains power and unplug it before opening the enclosure. Treat this as a hard prerequisite, not a formality.

Note that the main PCB retains an onboard battery independent of mains power. This means portions of the board can remain energized even after the unit is unplugged. As a result:

• Avoid bridging any pad, pin, or trace with tools, wire, or other conductive material.

• Mask or otherwise physically isolate exposed circuitry before beginning disassembly to prevent accidental contact or shorting.

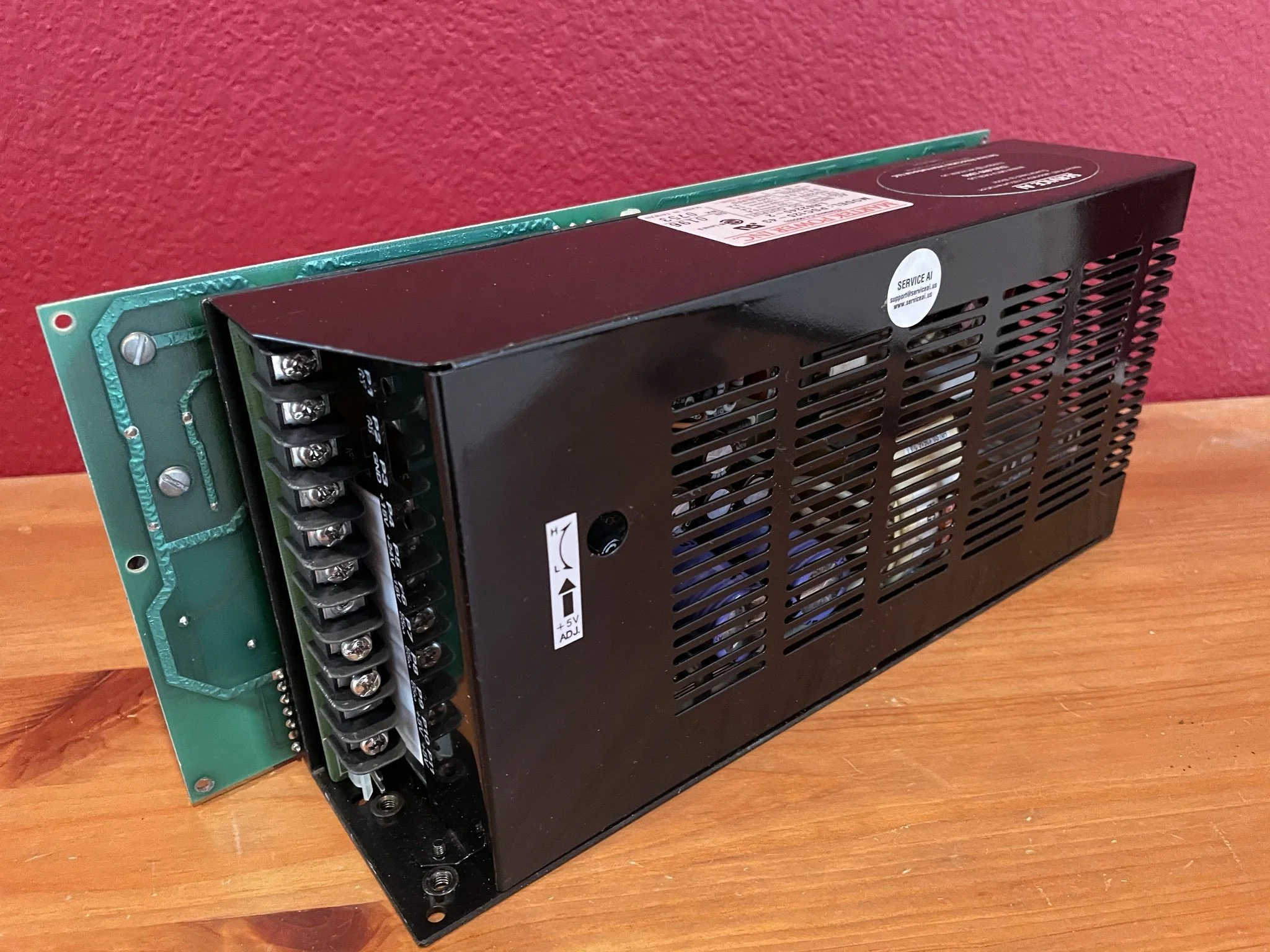

• When separating the Relay Board (Part No. 500702) from the power supply assembly (Part No. 606682), account for every plastic standoff/spacer as you go. These are easy to misplace and their absence during reassembly can affect board clearance or grounding.

Preserve Wiring Fidelity

The single highest-risk step in this procedure is transferring the wires. Every conductor must be returned to the exact terminal from which it was removed. There is no room for approximation: a swapped connection can produce symptoms far removed from the power stage itself.

Two approaches work well depending on the connector hardware in your unit:

• Sequential terminal transfer: If your cable retention clips can be released, you gain enough slack to move the wires from a single terminal at a time — old supply to new — before moving on to the next terminal. This keeps the risk of cross-connection low because you're never juggling more than one termination point at once.

• Batch labeling: Where clips can't be opened easily, bundle the conductors by destination terminal first and tag each bundle. This lets you preserve the original routing order even when the wires have to be moved as a group rather than individually.

When mapping connections, index terminals by counting from a fixed physical reference point (pick one end of the terminal strip and stay consistent). Don't trust silkscreen or printed numbering to line up with current hardware revisions — legacy labels frequently drift out of alignment with the actual terminal positions on newer boards.

Freeing Stuck Fork Terminals

Fork-style spade connectors can bind on the screw shank even after the screw is backed off. Two field-tested methods for breaking them loose without damaging the terminal:

1. With the screw partially loosened, work it back and forth through a small arc (roughly a quarter turn) while applying steady outward pressure on the terminal. The oscillation breaks static friction and lets the fork slide free with much less force.

2. Alternatively, back the screw out entirely, remove the wire, and thread the same screw back into its original hole. This avoids repeated torque on a jammed connector altogether.

Closing Out the Job

Once the replacement supply is seated and every wire has been verified against your terminal map or labeled bundles, restore any cabling or harnesses that were disconnected mid-procedure. Before re-powering the unit, run a final continuity or connection check and compare it against photos taken before disassembly. It's a worthwhile habit, far cheaper than a return trip.

Takeaway for the bench: this is a procedure where discipline in labeling and wire tracking matters more than speed. Isolate the unit properly, respect the live battery circuit, don't lose your hardware, and verify every termination before closing the repair.
